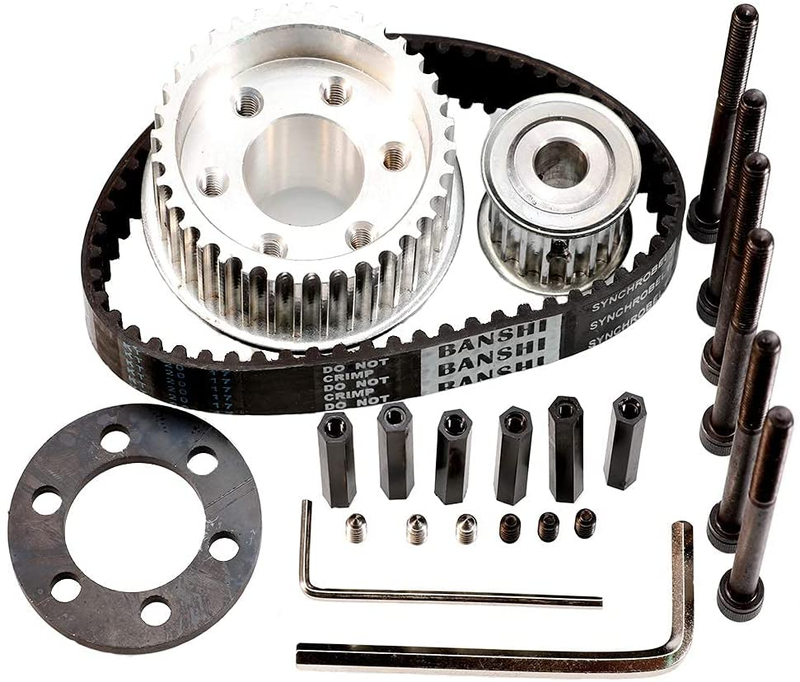

DIY Electric Skateboard 83MM 90MM 97MM PU Wheel Pulleys Kit Set

DIY Electric Skateboard 83MM 90MM 97MM PU Wheel Pulleys Kit Set
Description Part Number H-TBL3Z15 Wheel Size 83 Millimeters Color Motor shaft diameter 10MM/Belt width 15MM Material pu leather Package Weight 0.25 Kilograms Item Weight 245 Grams Suggested Users womens Deck Width 7 Inches Wheel Material Polyurethane Age Range (Description) Adult Item Package Dimensions L x W x H 7.6 x 5.8 x 2.1 inches

Product does not include wheels Please pay attention to confirm（Only for our motor Mount） whether the PU wheel hole style is suitable, the motor shaft diameter, whether it is compatible with the motor bracket and then place an order to purchase!Seagull 7 inch bridge length: 248MM, diameter 63MM length 74MM motor space only meets a single drive single motor, if the motor length is below 65MM can meet the dual drive dual motor, please confirm the size when buying avoid buying two sets of

Works with Flywheel wheels Cruiser clones ，diameter:83/90/97/100MM Width: 52MM pu wheel 6rectangular holes wheel，

Only suitable for 63 series（6374） brushless motor， （Little Pulleys Aperture: 10MM）

The size of the motor bracket suitable for 63series（6374）brushless motor must be compatible, and the adjustable bracket is required to meet the belt circumference of 285MM.

pulleys wheel 36/18 5M HTD belt width 15MM perimeter285MM

Product Description Name 9052 PU Wheel square Skateboard Trucks V2 Wireless Remote V1 Wireless Remote Mount+pulley
VANPRO: Different height, Different world!
VANPRO brand advantage: "Different height, Different world!" Bring you good products and experience!
Instruction Manual：
many uses : 1. Electric skateboard 83/90/97 wheels pulleys KIT: for 8352, 9052, 9752, 10052 PU wheels 6rectangular holes wheel 2. Only suitable for 63series（6374） brushless motor， （Little Pulleys Aperture: 10MM）
Structural design： Pulley wheel：aluminum net weight：255g 5M Pulley wheel: large teeth 36 / small teeth 18 Size Pulley gear teeth 17MM Large Pulley wheel hollowed out inside diameter：46MM Small sync wheel inner diameter：10MM Belt：5M perimeter285 width 15MM
Use demo：
Features Transmission is accurate, no slip at work, with a constant transmission ratio. Smooth transmission, with a buffer, shock absorption capacity, low noise. Easy maintenance, no lubrication, low maintenance costs. Mount structure design fixed hole position can be adjusted motor 4 fixed screw position, thereby adjusting the size of the belt between the Pulley wheel elastic.
Package Includes: 1 *5MSize sync wheel ( 5*M4 5*M3 ）Machine screws 1*Belt 1*Stainless steel fixed ring （1*3MM 1*2MM 1*1.5MM） L wrench 7*M5 Fixing screw 7*M4 Nylon column
