ESC Remote Kit for DIY Electric Skateboard,10S 36V Dual Hub Motor

latest version ESC of 2024,a sine wave scheme makes it work more stable than the other ESC and it is not easy to burn out,Voltage: 36V, 10S (30V-42V),rated current: 12*2=24A,you should use a battery has a maximum continuous discharge of 30A at least.

high speed with high torque.with puaida’s 90 mm dual hub motors ,you can go up to 30 mph on speed mode 3 and 4,the acceleration on speed 4 is extremely strong ,you’ve gotta be really careful

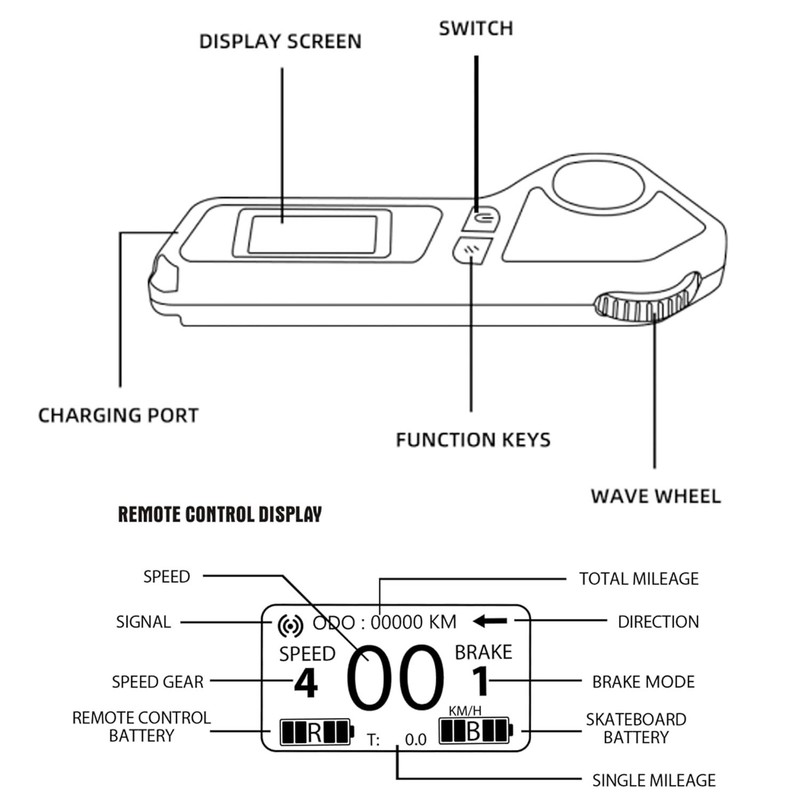

Intelligent Remote with Display：2022 new version remote, more precise throttle for Forward ,and brake ,only power button and function button to control reverse , lights , cruise control and speed/brake modes,easy to operate,it has 4 speed modes and 4 brake modes,you can easily check the current speed , speed mode, brake mode,battery level of the remote and skateboard etc on the screen.

Multiple Protections: It features low-voltage alarm function, under-voltage and power-failure protections.low-voltage protection: 30V-33V,overvoltage protection: 46V

compatible with 70-120 mm hub motors < 80 kv and not compatible with belt drive motors ,recommend using puaida dual hub motor set,and please note that the ESC uses MR30 and XT60 connectors.

Product Description
How to Pair the Remote to the Board:
1. Turn on the esc. Then long press power button till the power indication light flashes.
2. Turn on the remote and press the power button and function button at the same time
Specs for the ESC Voltage 10S (30V-42V) rated current 12*2=24A Locked-rotor time 4 sec Locked-rotor current 5A-8A Peak phase current 40A-45A quiescent dissipation 5uA maximum speed of revolution 3000r/min Sensing Way Hall Power Connector XT60 Male Plug Motor Connector Mr 30 Male Plug low-voltage protection 30V-33V overvoltage protection 46V Regenerative braking current 10A temperature protection 80℃-120℃
Package:
1x Remote controller
1x esc
1x cable for the remote
1x power botton
Note: No Installation Guides Are Included, Professional usage is strongly recommended. We strongly suggest you to watch our video to help you to install this ESC. Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars
