Motor Skateboard Speed Controller, 36V Electric Speed Controller

Menu

Motor Skateboard Speed Controller, 36V Electric Speed Controller Dual Motor Esc Set for Electric Skateboard Esc Diyelectric Motor Electric Skateboard Battery Controller

EXCELLENT AND STABLE PERFORMANCE ---- The electric skateboard ESC kit is made of chip and electronic components, dual drive design can offer excellent and stable performance.The electric longboard kit has a indicator that displays signal status, speed modes, battery percentage.This longboard electric kit design is easier to use.

WITH A PORTABLE CONTROLLER ---- Comes with a portable controller,Skateboard Speed Controller has ergonomic shape, very comfortable to hold and use. 4 different speed modes: dual motor electric skateboard controller has high speed sport mode, high speed economy mode, middle speed mode, low speed mode.

REMOTE CONTROL ---- This electric longboard skateboard motor controller has EMP control module with remote module, electric skateboard kit can do whatever as ESC do, Electric Speed Controller would be easy to damage, this dual motor electric skateboard controller would be more stable and cheaper.The solid structure of mainboard can greatly lengthen the service life.

EASY TO INSTALL ---- The Electric Speed Controller is easy to install.The Electric Skateboard Speed Controller well-organized circuit board is easy to install, but Dual Hub Motor Esc needs professional skills. You can contact our customer service if you have any questions.

SERVICE ---- We launch Electric Skateboard Motor And Esc that meet your needs, and you will get our 100% problem-free . Customer's smile is our first goal,if you have any question,please feel free to and we offer 24 hours friendly customer service.

Product Description
WITH A PORTABLE CONTROLLER
Electric skateboard ESC kit comes with a portable controller, it has ergonomic shape, very comfortable to hold and use. 4 different speed modes: high speed sport mode, high speed economy mode, middle speed mode, low speed mode.
The electric skateboard ESC kit is made of high quality chip and electronic components, dual drive design can offer excellent and stable performance.
REMOTE CONTROL
MORE STABLE AND CHEAPER
This electric longboard skateboard control system has EMP control module with remote module, it can do whatever as ESC do, ESC would be easy to damage, this control module would be more stable and cheaper.The solid structure of mainboard can greatly lengthen the service life.
WITH A INDICATOR
The electric skateboard ESC kit has a indicator that displays signal status, speed modes, battery percentage.This design is easier to use.
STREAMLINED LAYOUT
This electric skateboard remote control adopts ABS surface injection treatment, has a streamlined layout, which is more ergonomic, easy to control, and tighter.

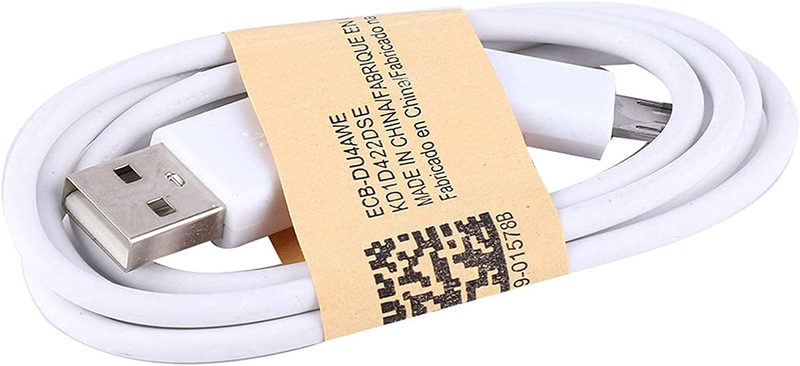

Package List: 1 * Control 1 * Remote Control Transmitter 1 * LED Battery Indicator 1 * Switch 1 * USB cable
The remote controller matches the main controller with a signal description:
1: Connect the main control to the power supply
2: The power is turned on, wait for two seconds, then press and hold the key for about 6 seconds. Wait until the switch indicator flashes.
3: Turn on the remote control switch and use a small screwdriver to press the button inside the small hole in the lower left corner of the remote control.
4: The remote control is turned off for two seconds and then turned on. Wait for the remote control signal light and the switch signal light to flash at the same time to indicate that the match is successful.
Specifications: Double drive: Approx. 100*76*18mm / 3.9 x 3 x 0.7in Voltage: 36V Current: 12A Maximum RPM: 3000 rpm Maximum power: 430W (36V) Drive mode: sine wave FOC has a slow start Maximum speed: 35KM/H Protection: over-voltage, under-voltage, over-temperature, stall, CWCCW, speed control Sensing method: Hall Carrying weight: ≤120KG Power connector: XT60 Motor plug: 4mm banana plug Hall interface: 5pin 2.0 connector Size: approx. Approx. 18.5*10*4cm / 7.28*3.94*1.57in Weight: approx. 227g
ENJOY YOUR LIFE
Life is wonderful everywhere!
Item Specification

Part Number obkyhpzvw3 Item Dimensions LxWxH 7.28 x 3.94 x 1.57 inches Color Black Load Capacity 120 kg Package Weight 0.23 Kilograms Item Weight 227 Grams Wheel Size 100 Millimeters Deck Length 10 Centimeters Item Package Dimensions L x W x H 7.48 x 4.33 x 1.57 inches

Dimensions Shipping Returns Additional Info

Product Dimensions: 4.33 inches x 7.48 inches x 1.57 inches. Weight: 227.0 grams
